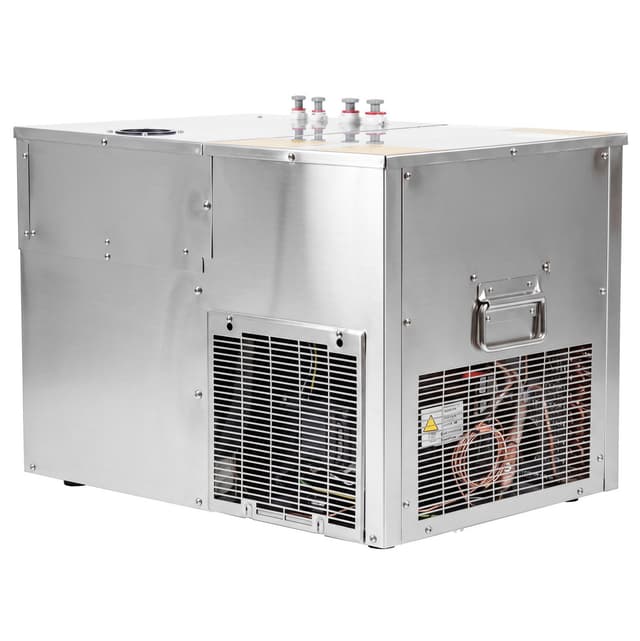

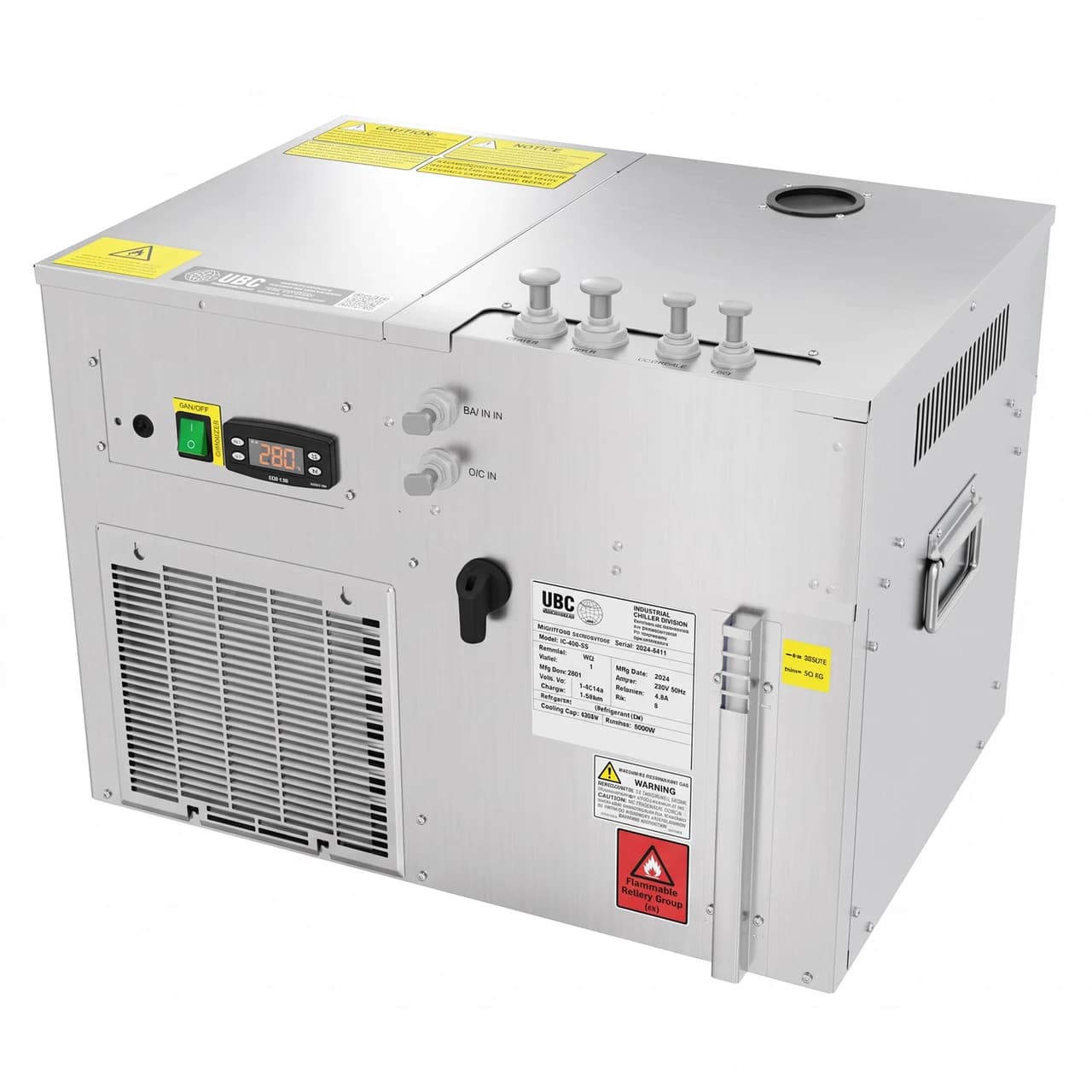

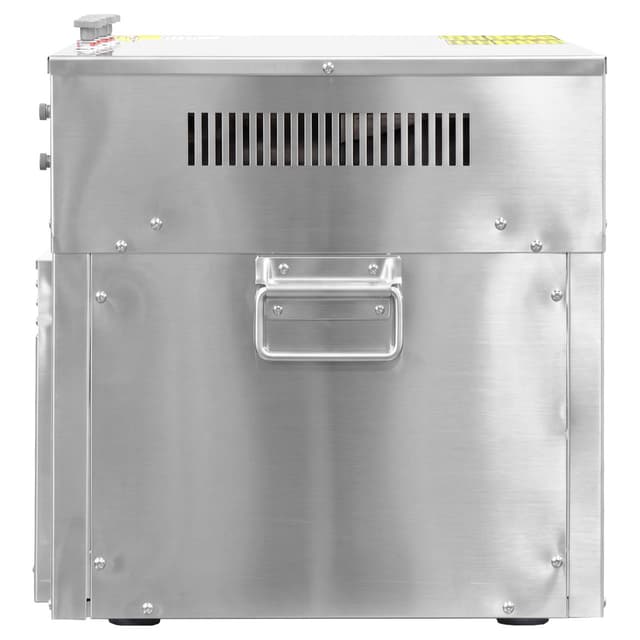

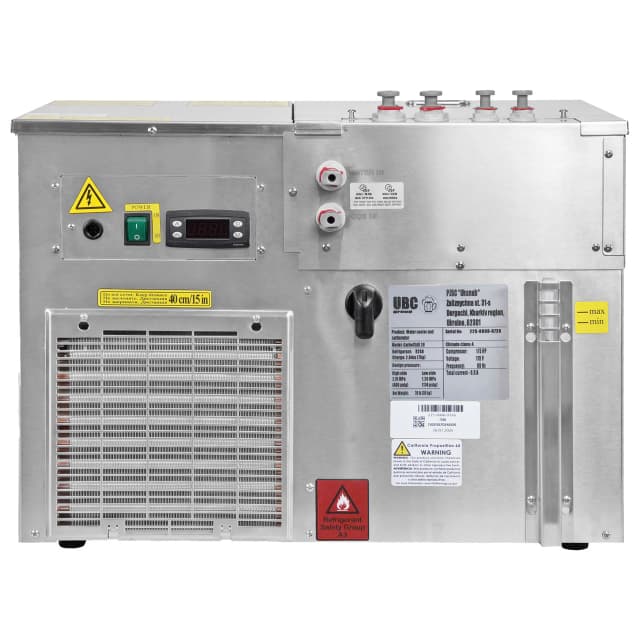

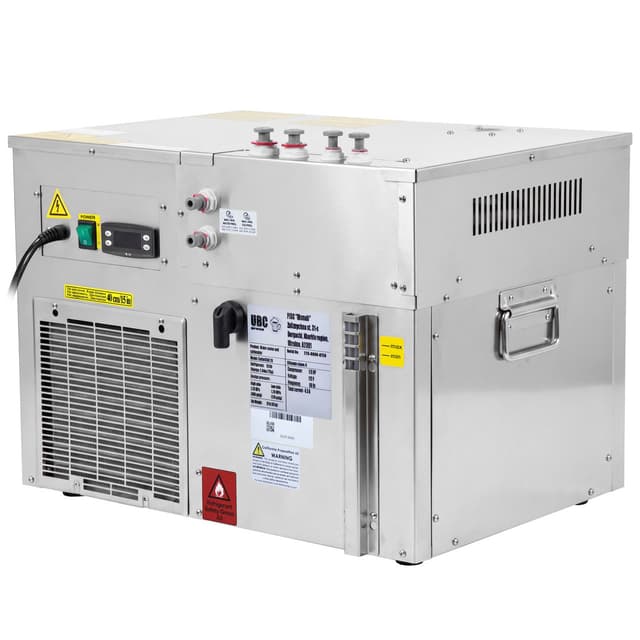

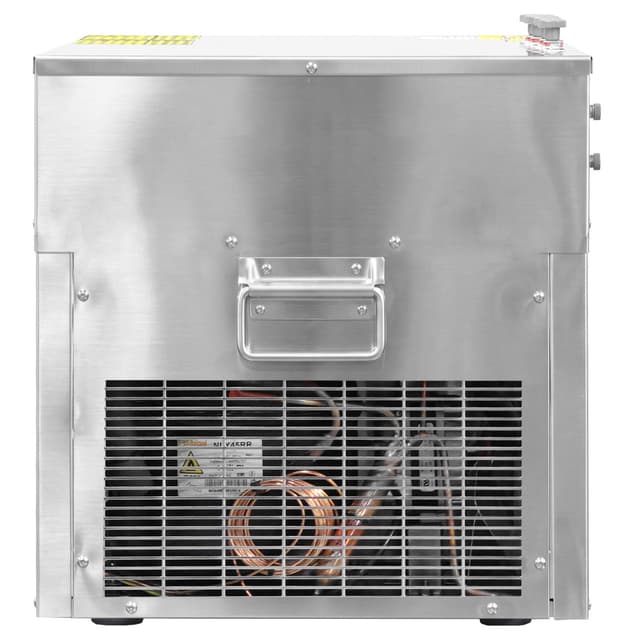

CarboChill 20 Undercounter Water Carbonator
2-line chilled still and sparkling water cooler with recirculation
Need setup guidance? Contact us before ordering.
Quick Specs
- skuCCV-20
- part NumberCCV-20
- output22 Gallons/Hour (83 Liters/Hour)
- product Lines2 (Still / Sparkling)
- recirculationCold-water recirculation pump
- water Tank Volume4.1 gal
- carbonator Capacity22 Gallons/Hour
- carbonator Volume0.32 gal max / 0.23 gal min
- outlet Temperature38-46 F (3-8 C)
- compressor Power1/5 HP
- operating Amperage6.5 A
- voltage115V / 60Hz
- plug TypeNEMA 5-15P
- refrigerantR290
- refrigerant Charge75 g (2.64 oz)
- pull Down Time3.5 hours at 77 F ambient
- ice Bank Weight14.1 lb
- coils1
- connection3/8 in OD inlet/outlet
- ambient Temperature60-90 F
- clearance12 in around the unit
- power Cord Length6 ft
- weight79 lb gross / 78 lb net
Product Overview
- Still and Sparkling Water: Two product lines support chilled still water and chilled sparkling water from one undercounter unit.
- 22 GPH Output: Built for commercial locations with steady demand for cold water service.

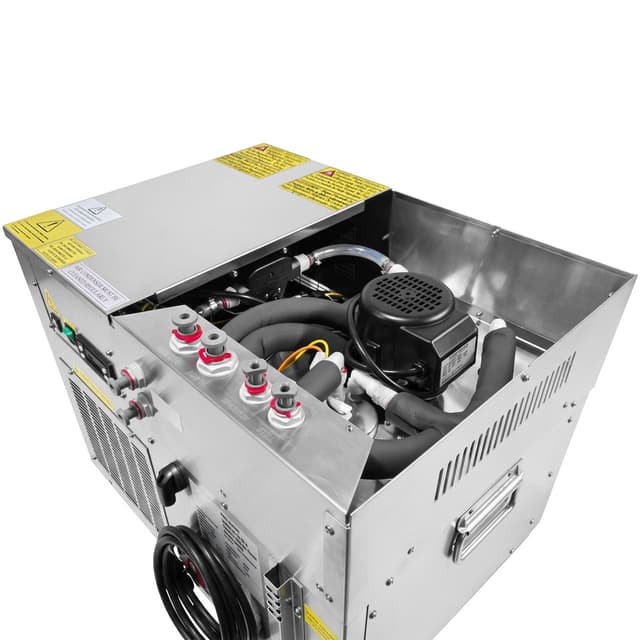

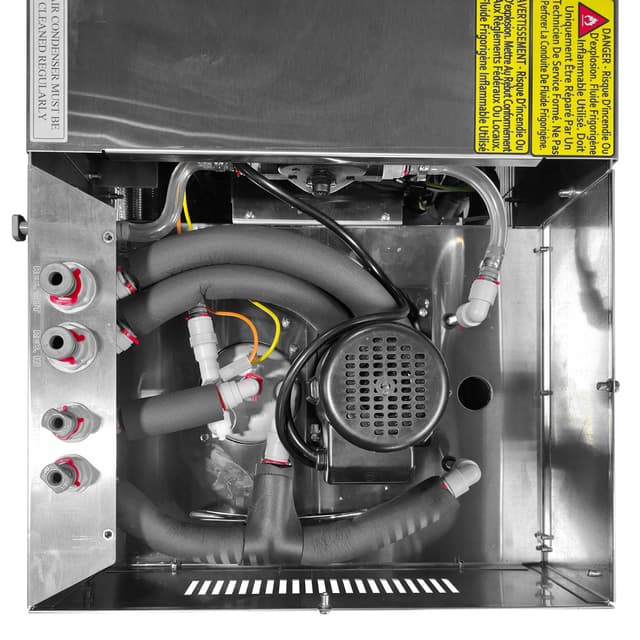

- Recirculation Ready: Integrated cold-water recirculation pump helps keep compatible remote towers cold between pours.
- Built-In Carbonator: Produces sparkling water on demand with an external CO2 tank and regulator.
- Commercial Cooling Package: 4.1-gallon water tank, 14.1 lb ice bank, digital thermostat, and R290 refrigerant.
Details
The CarboChill 20 Undercounter Water Carbonator is a commercial chiller and carbonator for sites that want cold still and sparkling water on tap without taking up countertop space. It connects to the building water supply, chills the water, and carbonates the sparkling line through its built-in carbonator.

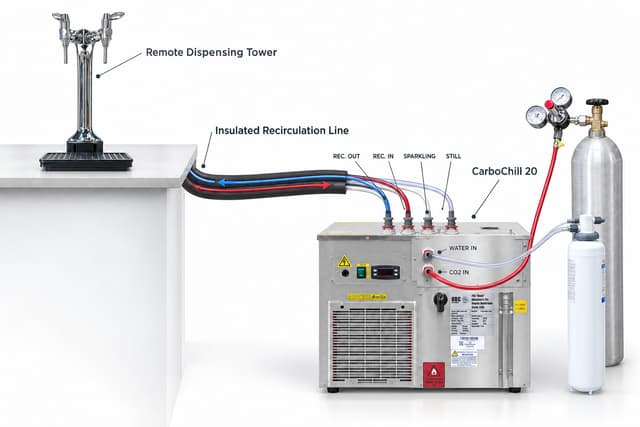

This model is especially useful when the tower is installed away from the cooler. The cold-water recirculation pump keeps water moving between the unit and a compatible dispensing tower, helping reduce the warm first pour that can happen after idle periods.
With 22 gallons per hour of output, a 1/5 HP compressor, and 115V power, the CarboChill 20 is a strong fit for restaurants, cafes, offices, hotels, bars, and hospitality counters that serve filtered still and sparkling water throughout the day.
Best Fit
Choose the CarboChill 20 when you need a higher-output still and sparkling water unit with recirculation support. It is a practical fit for:
- Restaurants and cafes replacing bottled sparkling water service
- Offices and hospitality spaces adding filtered water on tap
- Bars, hotels, and venues with a remote tower or longer dispense run
- Beverage counters that need consistent cold water during busy service periods
For a packaged Purotap setup with tower, CO2 tank, filtration, and installation hardware, compare this unit with the Purotap 20 GPH Undercounter Water System.
Compatibility and Setup Notes
- Requires a compatible dispensing tower or faucet, sold separately unless bundled into a package.
- Requires an external CO2 cylinder and regulator for sparkling water.
- Use a water filtration system matched to the site conditions and service volume.
- Uses 3/8 in OD water inlet and outlet connections with push-connect style fittings.
- Needs standard 115V / 60Hz power with a NEMA 5-15P plug.
- Plan at least 12 in of clearance around the unit for airflow and service access.
Before Ordering
Confirm tower compatibility, recirculation line routing, filtration requirements, CO2 placement, ventilation clearance, water pressure, and electrical access before ordering. If you are replacing an existing chiller or carbonator, verify the connection sizes, tower layout, and available cabinet space before selecting this unit.
